CS 3132
CS 3132

CS 3132

3 way tri-amplified screen channel speaker with bi-amp option

The CS 3132 is a high-performance 3-way screen channel speaker engineered for medium-format cinemas, delivering exceptional clarity, dynamics, and coverage. Configurable in both tri-amp and bi-amp modes, it features dual 15-inch woofers, a dedicated 10-inch midrange, and a high-output compression driver for powerful, natural sound reproduction. Time-aligned drivers, precision-engineered horn technology, and optimised crossover design ensure accurate imaging, outstanding dialogue intelligibility, and uniform audience coverage. Its compact, shallow-profile enclosure simplifies both in-wall and platform installations, while the cinema-optimised acoustic design delivers a flat frequency response and controlled directivity for an immersive movie experience.

Warranty

2 Years

Dimensions

450mm×760mm×883mm

  • 3 way design with bi-amp or triamp modes

  • Suits both in-wall and platform installations. Shallow profile relieves the need for a large installation space behind the cinema screen

  • Time-aligned compression and midrange drivers provide accurate imaging and minimum phase cancellations.

  • Tight directivity control and angled construction of midrange horn provides uniform coverage.

  • Sturdy, compact cabinet with shallow profile

  • Specially configured midrange phase plugs result in minimum phase cancellations resulting in intelligibility of vocals.

  • The mathematically-designed horn flare keesp distortion within limits.

  • Dual 15” LF enclosure available in different power ratings for different hall sizes.

  • All 3 sections – LF, MF and HF are optimized to provide flat frequency response inside a cinema hall (considering the influence of hall acoustics).

  • Controlled directivity with provision to tilt to the horn

DESCRIPTION
3 way tri-amplified screen channel speaker with bi-amp option
ENCLOSURE
LF: Baffle - Highly braced PPB M+HF: Injection moulded industrial grade plastic
TRANSDUCER COMPLEMENTS
LF: 2 x 15" woofer, 3" VC MH: 1 x 10", 3" VC HF: 1 x 1.4" throat compression driver, 2.5" VC
NOMINAL IMPEDANCE
TRIAMP MODE: LF: 4Ω, MF: 8Ω, HF: 8Ω BIAMP MODE: LF: 4Ω, MF + HF: 8Ω: 8Ω
POWER HANDLING
CONTINUOUS: LF: 1200W; MF: 400W, HF: 110W, MF +HF: 500W PROGRAM: LF: 2400W; MF: 800W, HF: 220W, MF +HF: 1000W PEAK: LF: 4800W; MF: 1600W, HF: 440W, MF +HF: 2000W
SENSITIVITY (1W 1M)
LF: 101dB; MF:105dB; HF:110dB, MF +HF: 103dB
SPL
MAX CONTINUOUS: LF: 132dB; MF:133dB; HF:134dB, MF +HF: 130dB MAX PEAK: LF: 138dB; MF:139dB; HF:140dB, MF +HF:136dB
FREQUENCY RANGE
40Hz ~ 18kHz (-3dB) 30Hz ~ 20kHz (-10dB)
NOMINAL COVERAGE HxV
90° x -30°/+20°
CROSSOVER FREQUENCY
LF + MF - 200Hz MF + HF - 1.2kHz (recommended)
RECOMMENDED SUBSONIC FILTER
1.2kHz (bi-amp)
INPUT
Screw type barrier strip. Provision to defeat passive crossover and gain access to HF and MF speaker terminals
FINISH
LF - Black PVC, HF - Black, Brackets - black powder coated
DIMENSIONS (WxHxD)
LF: 760mm x 883mm x 450mm M + HF: 760mm x 987mm x 477mm
NET WEIGHT
LF: 61kg M + HF: 30kg
MOUNTING
Provided, for mounting on top of LF cabinet

NOTE: Due to continuous improvements, all specifications are subject to change

Find YourPerfect Match

CS 3132

CS 3132

RECOMMENDED SUBSONIC FILTER

1.2kHz (bi-amp)

POWER HANDLING

CONTINUOUS: LF: 1200W; MF: 400W, HF: 110W, MF +HF: 500W PROGRAM: LF: 2400W; MF: 800W, HF: 220W, MF +HF: 1000W PEAK: LF: 4800W; MF: 1600W, HF: 440W, MF +HF: 2000W

DESCRIPTION

3 way tri-amplified screen channel speaker with bi-amp option

TRANSDUCER COMPLEMENTS

LF: 2 x 15" woofer, 3" VC MH: 1 x 10", 3" VC HF: 1 x 1.4" throat compression driver, 2.5" VC

FREQUENCY RANGE

40Hz ~ 18kHz (-3dB) 30Hz ~ 20kHz (-10dB)

DIMENSIONS (WxHxD)

LF: 760mm x 883mm x 450mm M + HF: 760mm x 987mm x 477mm

NET WEIGHT

LF: 61kg M + HF: 30kg

SPL

MAX CONTINUOUS: LF: 132dB; MF:133dB; HF:134dB, MF +HF: 130dB MAX PEAK: LF: 138dB; MF:139dB; HF:140dB, MF +HF:136dB

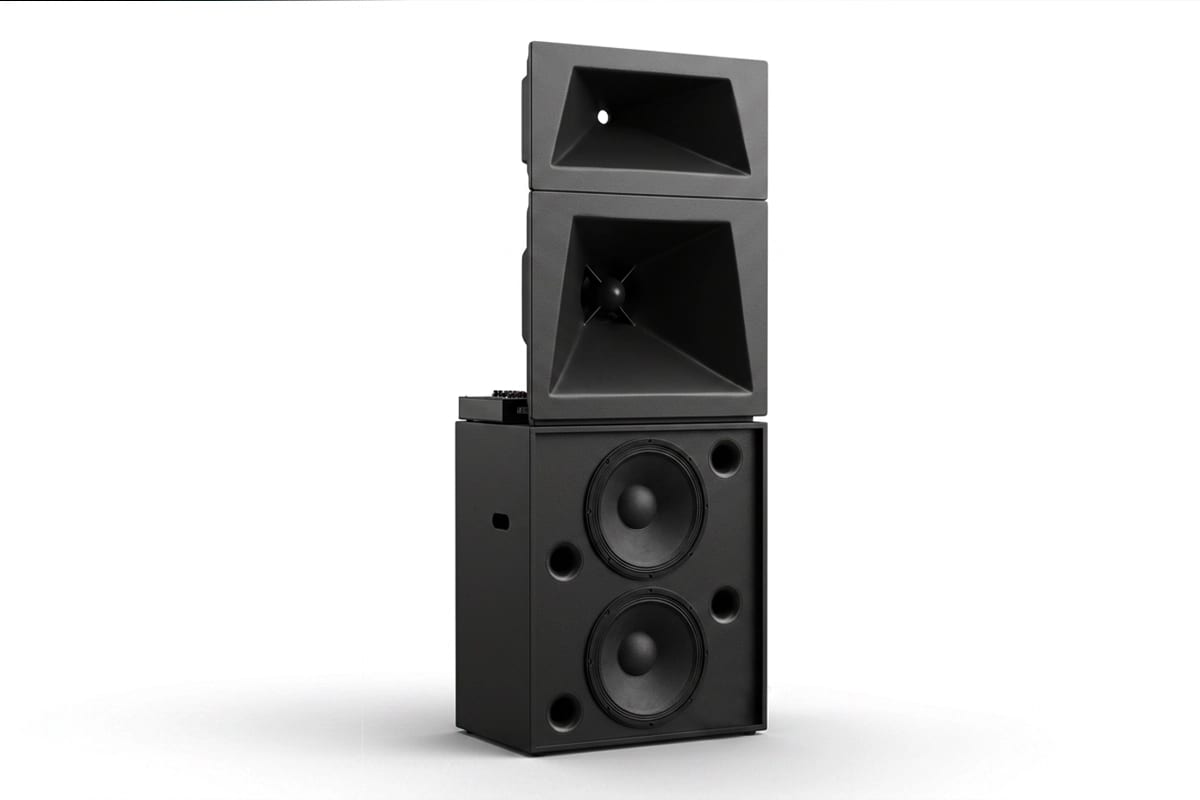

CS 3131

CS 3131

RECOMMENDED SUBSONIC FILTER

1.2kHz (bi-amp)

POWER HANDLING

CONTINUOUS: LF: 800W; MF: 400W, HF: 110W, MF +HF: 500W PROGRAM: LF: 1600W; MF: 800W, HF: 220W, MF +HF: 1000W PEAK: LF: 3200W; MF: 1600W, HF: 440W, MF +HF: 2000W

DESCRIPTION

3 way tri-amplified screen channel speaker with bi-amp option

TRANSDUCER COMPLEMENTS

LF: 2 x 15" woofer, 3" VC MH: 1 x 10", 3" VC HF: 1 x 1.4" throat compression driver, 2.5" VC

FREQUENCY RANGE

40Hz ~ 18kHz (-3dB) 30Hz ~ 20kHz (-10dB)

DIMENSIONS (WxHxD)

LF: 760mm x 883mm x 450mm M + HF: 760mm x 987mm x 477mm

NET WEIGHT

LF: 55kg M + HF: 30kg

SPL

MAX CONTINUOUS: LF: 130dB; MF:133dB; HF:134dB, MF +HF: 130dB MAX PEAK: LF: 136dB; MF:139dB; HF:140dB, MF +HF:136dB
