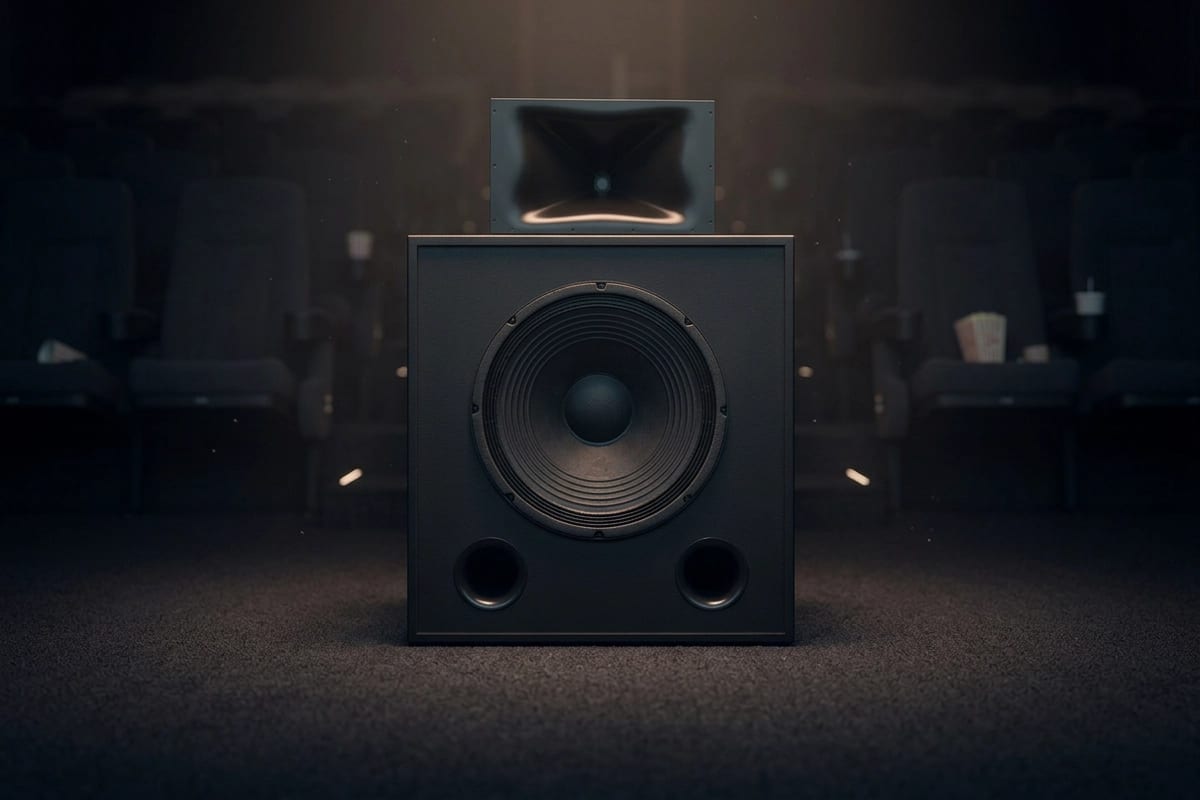

CS 1015

2 way screen channel speaker

The CS 1000 series comprises 2 way speakers that are designed for L, C, R main channel applications. Compact, yet powerful, they are ideal for the smallest cinema screens that require detailed, full-bodied sound from main channels. The drivers are time-aligned and there is tight directivity control. Due to extended LF response, integration with the subwoofer channel is seamless. Extensive power handling tests ensure hassle free, minimum maintenance operations.

Warranty

2 Years

Dimensions

400mm×575mm×600mm

2 way design with inbuilt crossover
Smooth and wide frequency response
Sturdy, compact cabinet with shallow profile
Controlled directivity with provision to tilt to the horn

DESCRIPTION

2 way screen channel speaker with high power LF

ENCLOSURE

LF: Baffle - 25mm PPB sides and back, 19mm PPB. Extensive bracing M/HF Horn: Injection moulded industrial grade plastic

TRANSDUCER COMPLEMENTS

LF: 1 x 15" woofer, 3" VC HF: 1 x 1" throat, 2" VC compression driver

NOMINAL IMPEDANCE

8Ω

POWER HANDLING

CONTINUOUS: 400W PROGRAM: 800W PEAK: 1600W

SENSITIVITY (1W 1M)

98dB

SPL

MAX CONTINUOUS: 124dB MAX PEAK: 130dB

FREQUENCY RANGE

55Hz ~17kHz (-3dB) 50Hz ~ 18kHz (-10dB)

NOMINAL COVERAGE HxV

90° x 50°

CROSSOVER FREQUENCY

2.6kHz

INPUT

Spring loaded binding post

FINISH

LF - Black PVC, HF - Black, Brackets - black powder coated

DIMENSIONS (WxHxD)

LF: 575mm x 600mm x 400mm M+HF: 335mm x 200mm x 222mm

NET WEIGHT

LF: 30kg M+HF: 6.1kg

MOUNTING

Provided, for mounting on top of LF cabinet

NOTE: Due to continuous improvements, all specifications are subject to change
