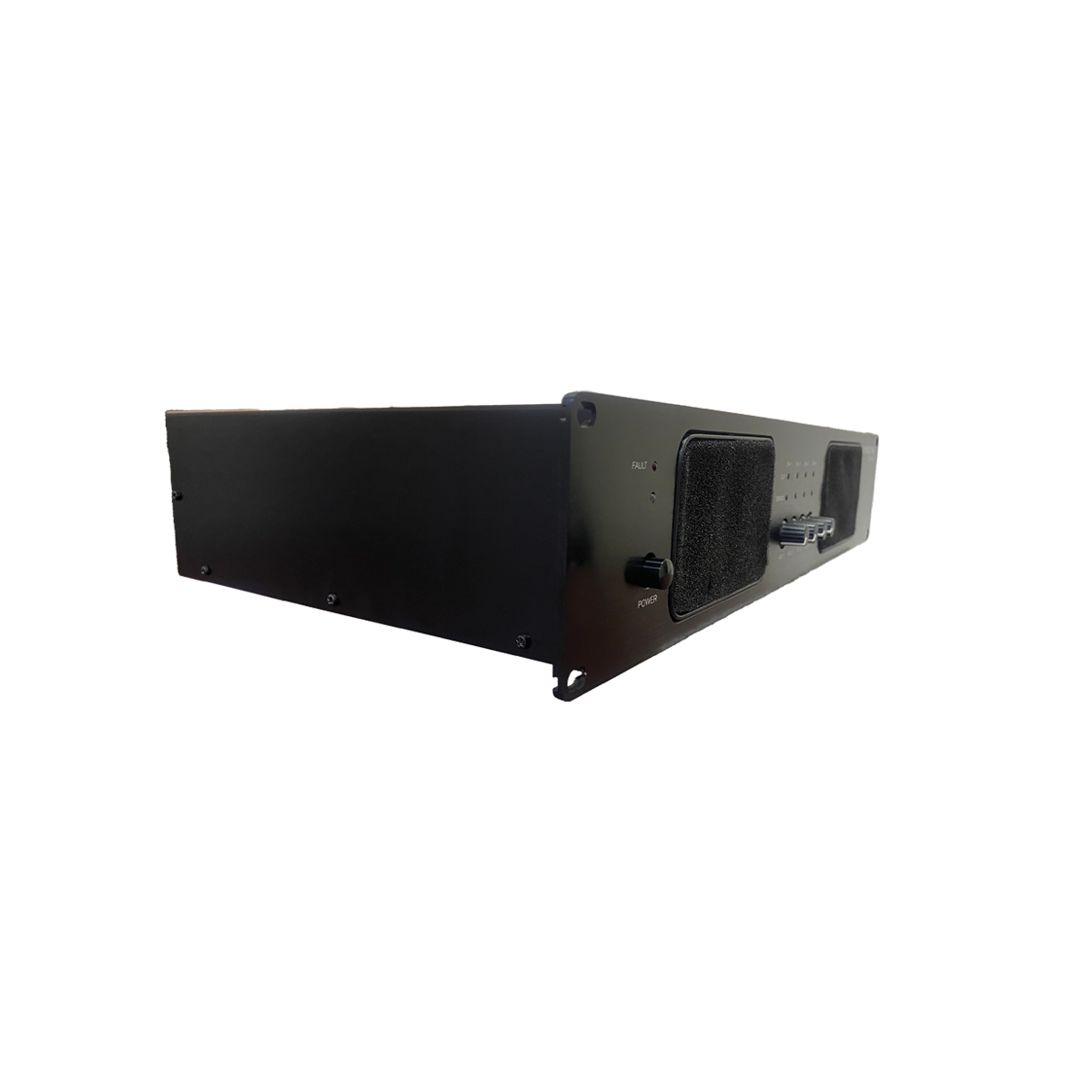

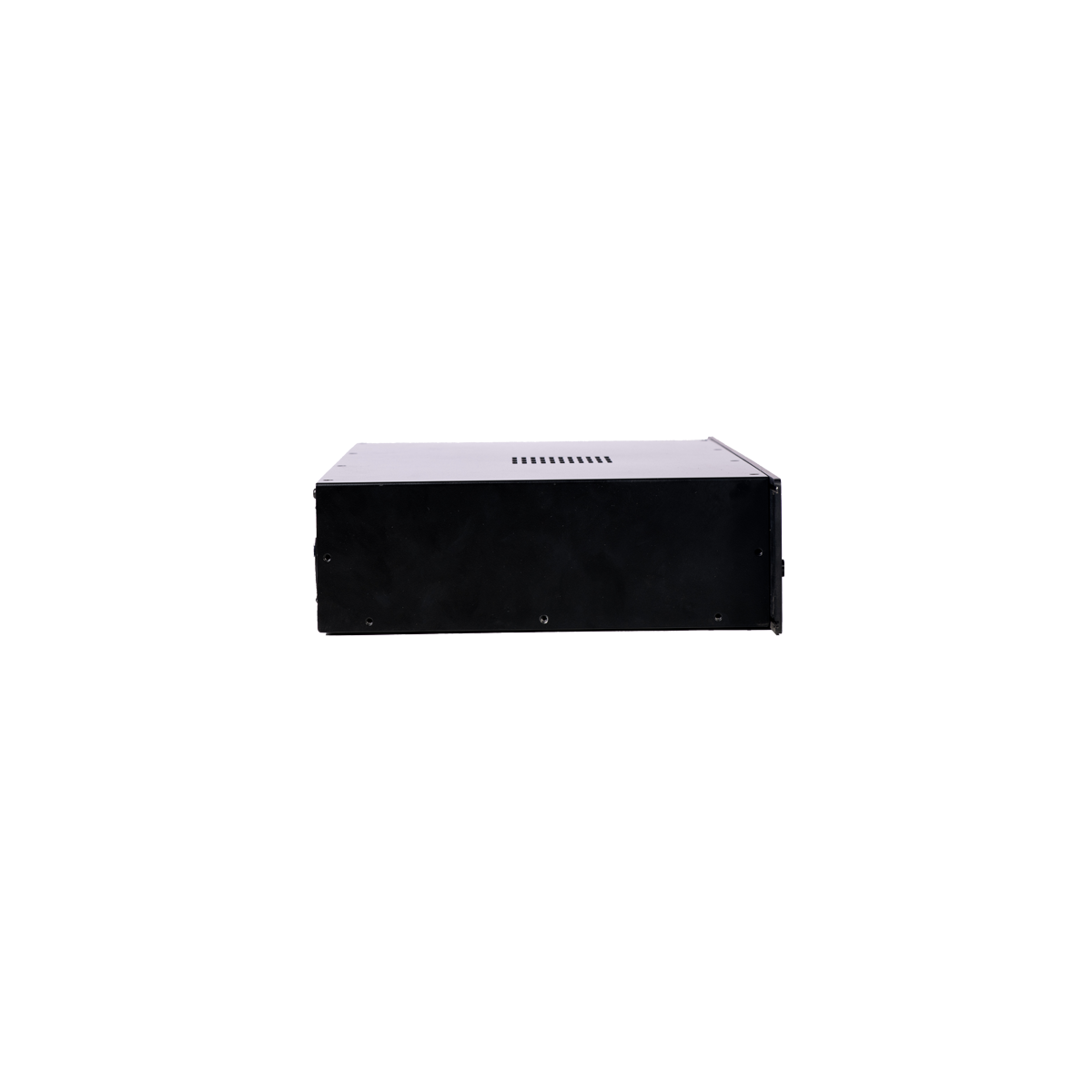

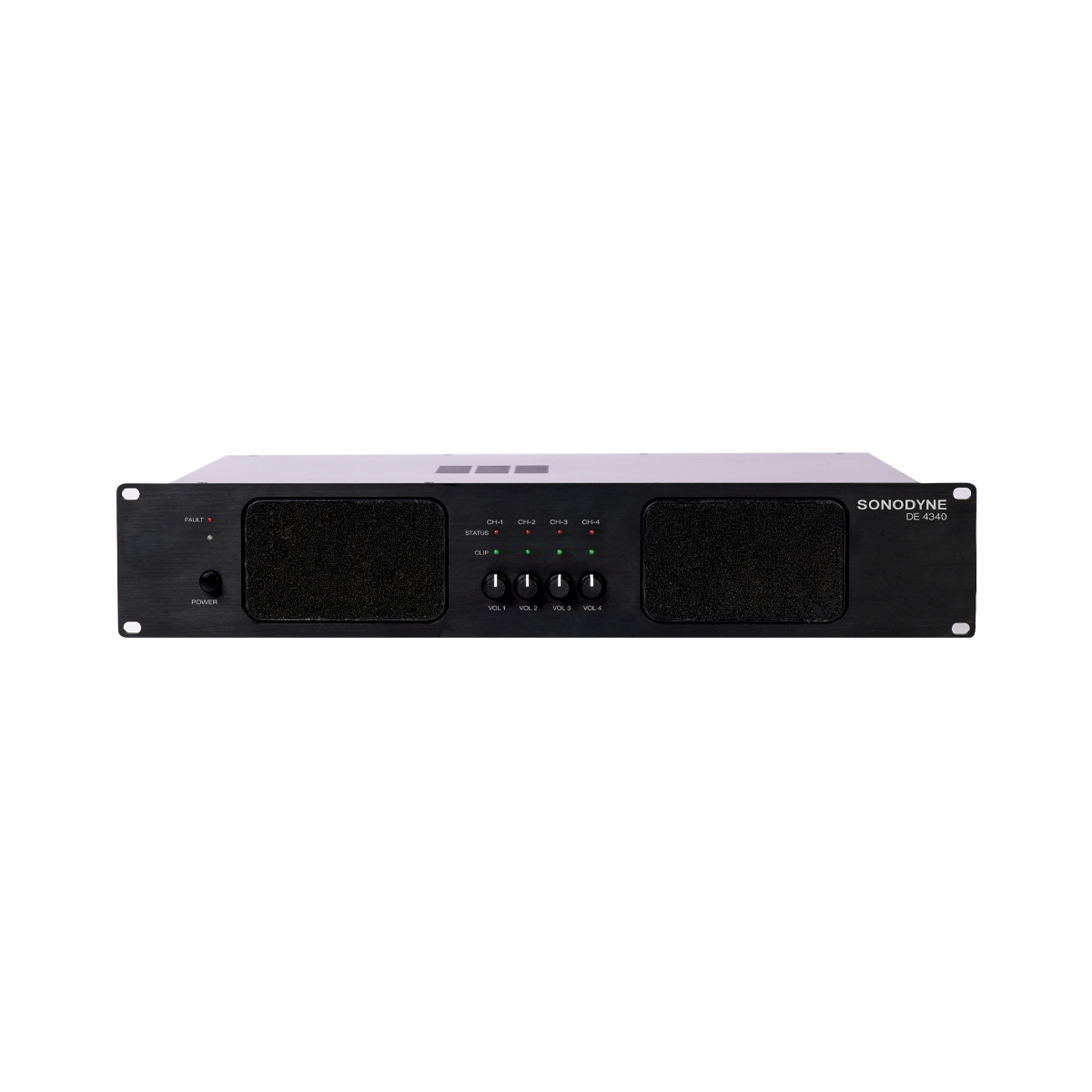

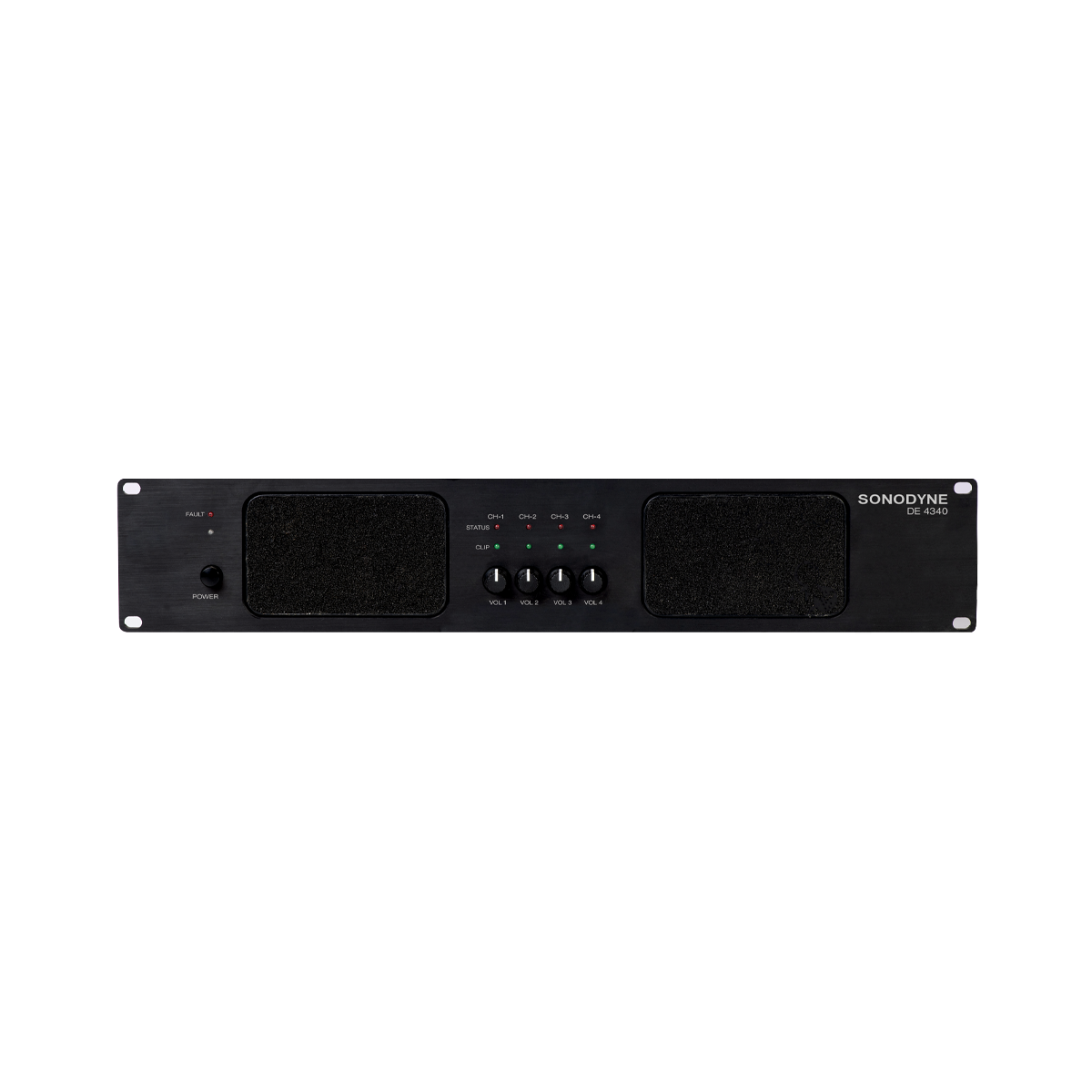

DE 4340 4 channel power amplifier

The DE 4340 is a 4 channel power amplifier that delivers 200 watt per channel at less than 0.5% THD. A compact D Class design with temperature controlled variable speed fan for cooling. It accepts balanced XLR inputs and outputs are Twist lock connector. With individul level controls, and 2 RU Rack mountable, it is ideal for home theatre and commercial installation application

×
banner-bg

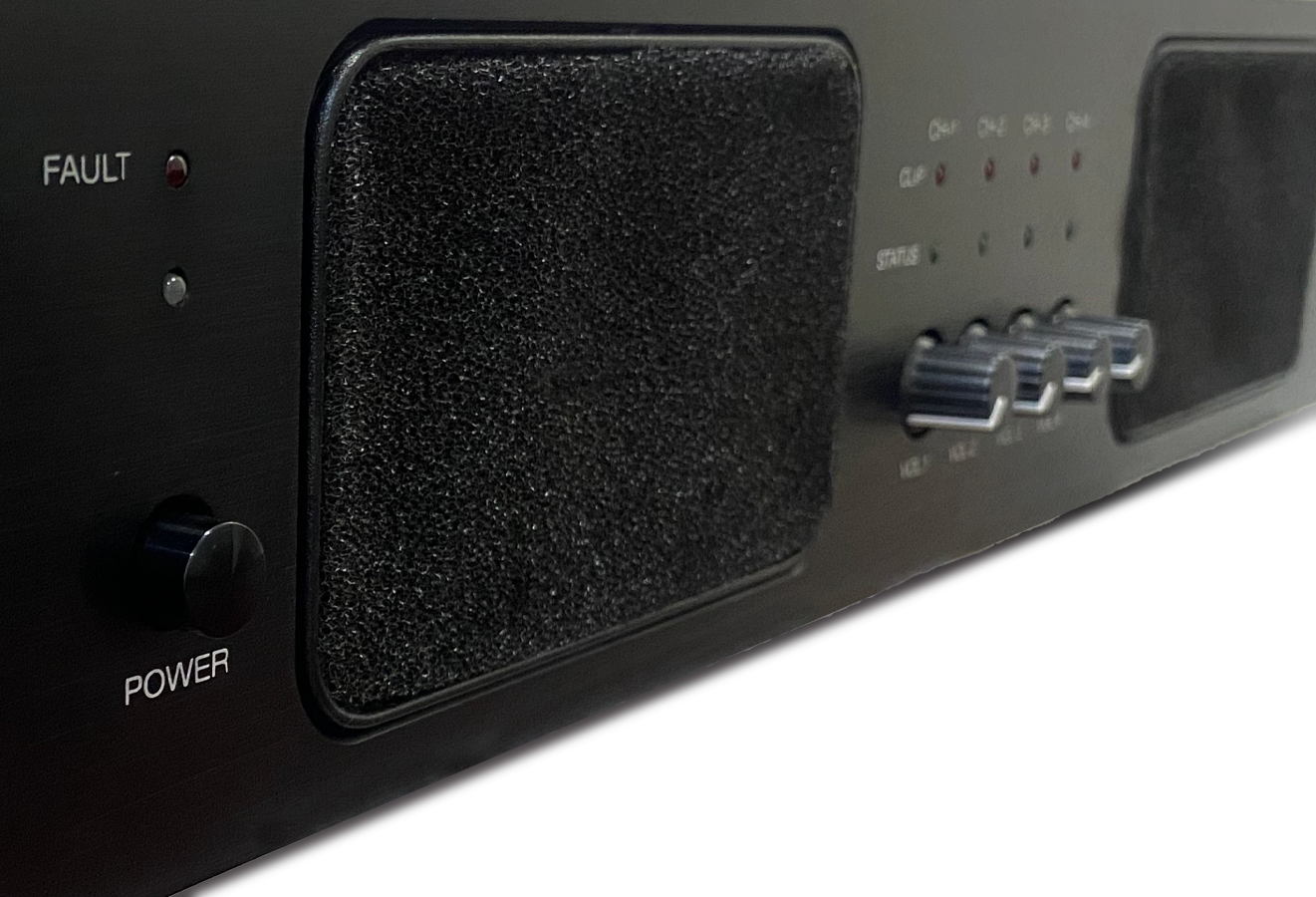

High power

Level Control

Class D Amplifier

High Power

Unclipped 200 watt RMS into 4 ohm, all 4 channels driven together, total of 800W RMS

banner-bg
banner-bg

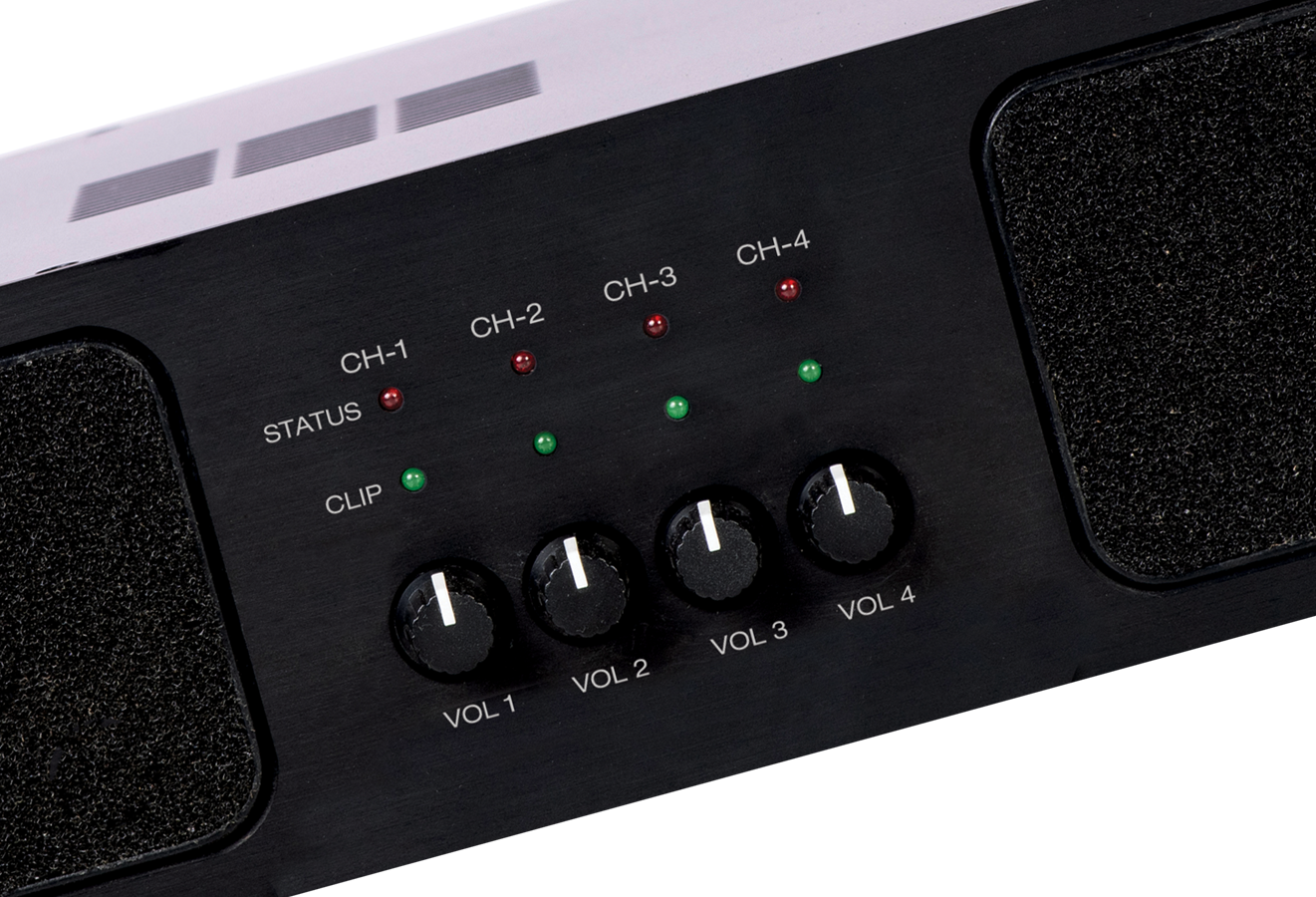

Level Control

Individual level control on each channel

banner-bg

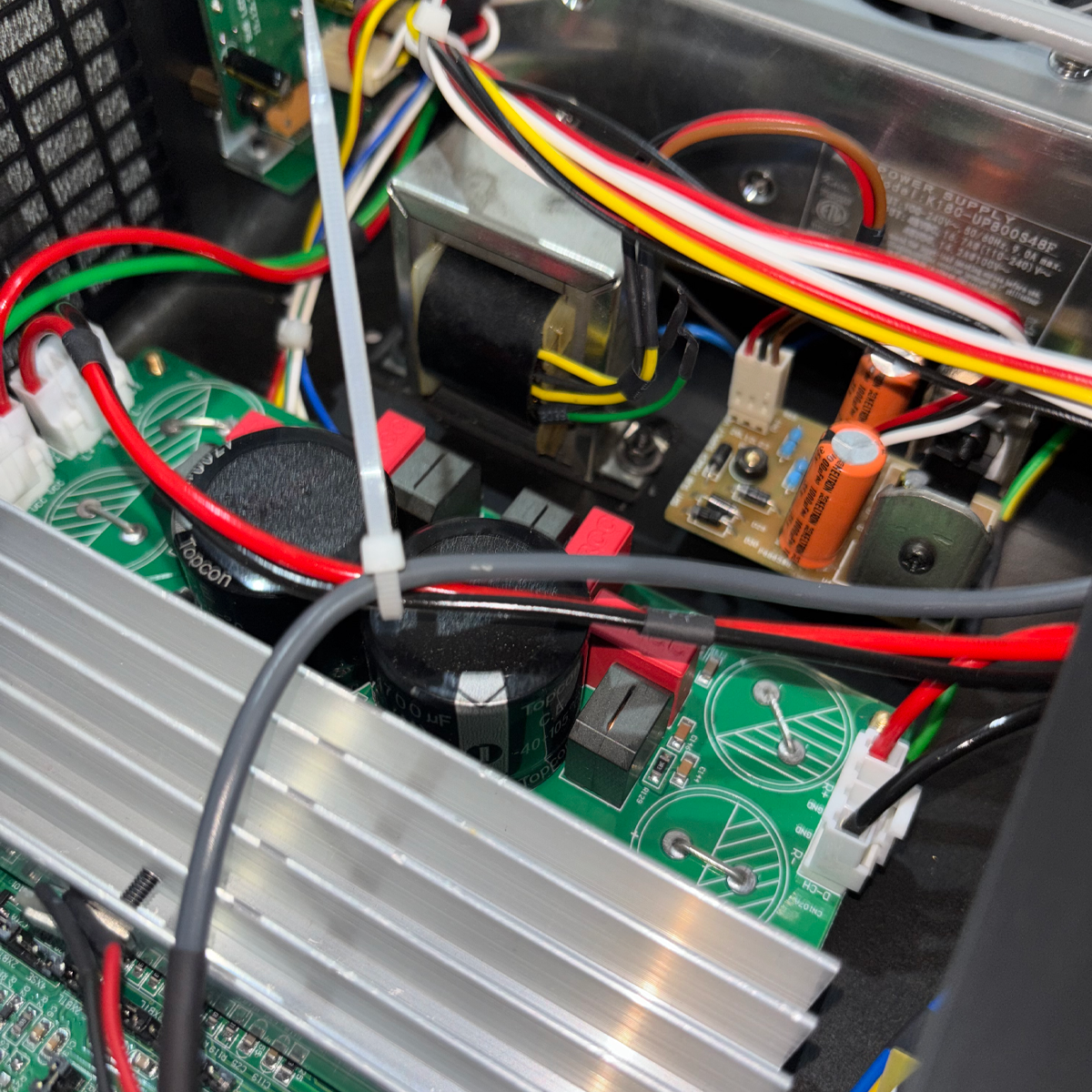

Class D Amplifier

Class-D amplifier design with 90% efficiency

banner-bg

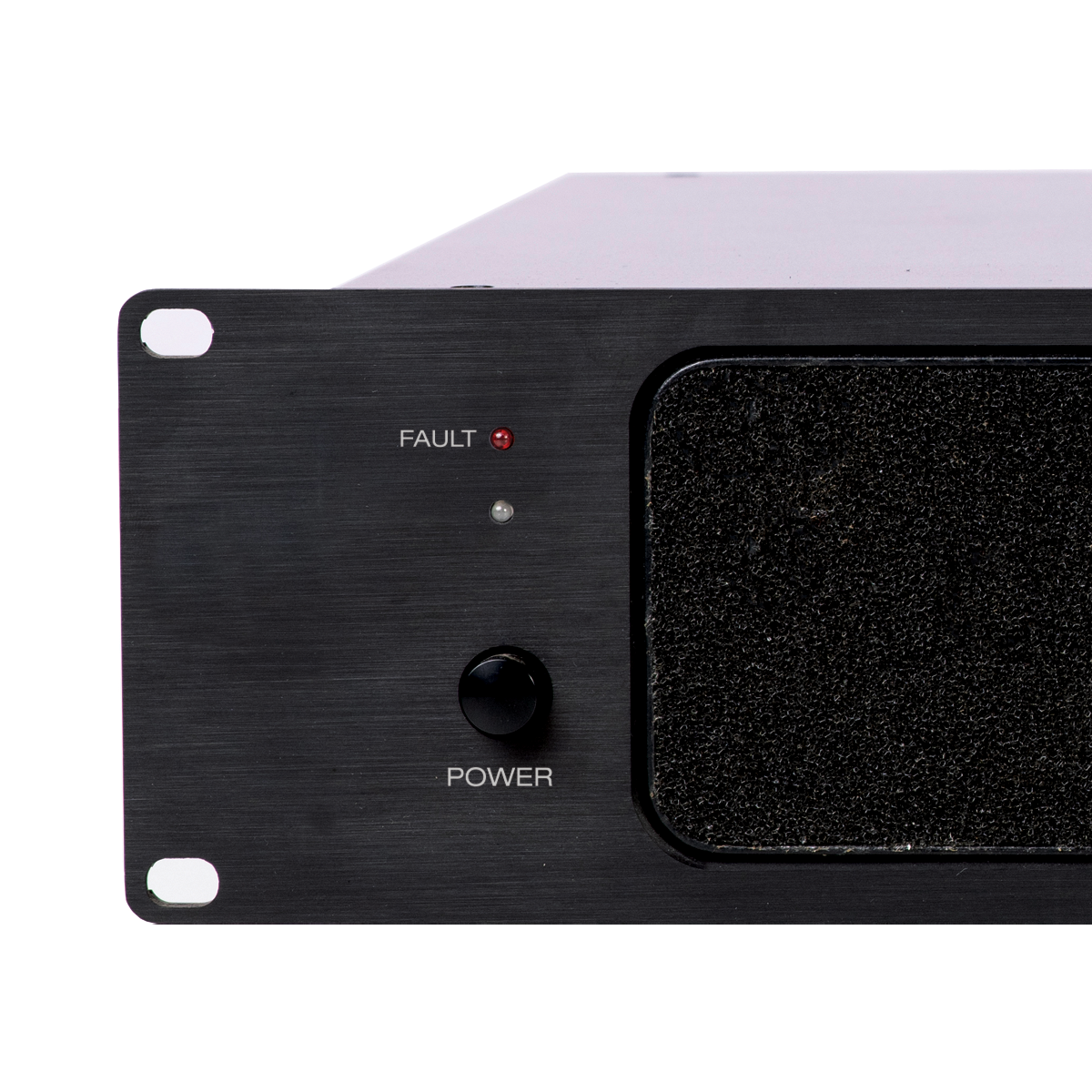

Exhaustive Protection

Short-circuit, overload, overheat, RFI

banner-bg

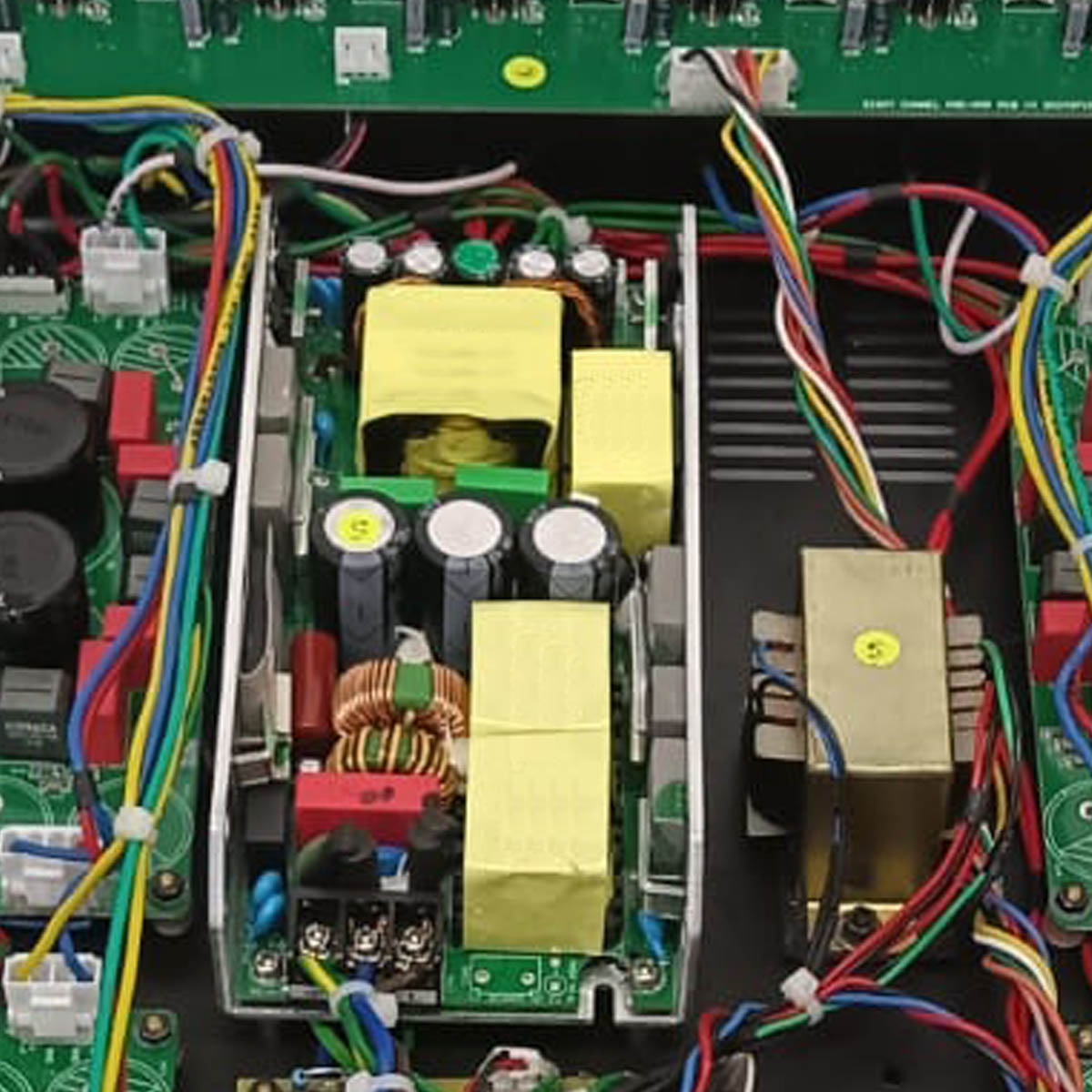

SMPS with Active power Factor Correction

Switched-mode power supply with built-in active power factor correction and 94% efficiency, resulting in low power consumption and light weight

banner-bg

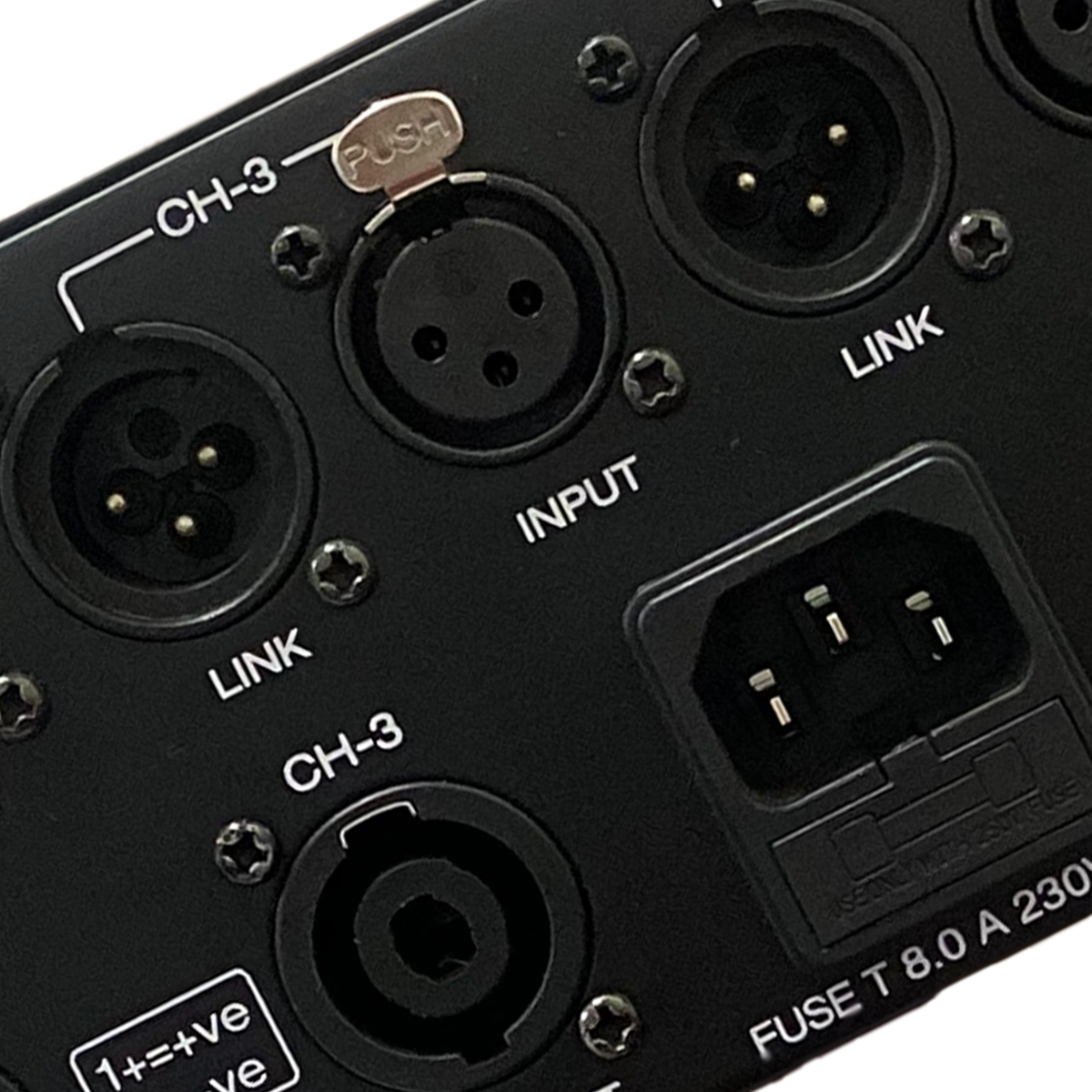

Balanced and Unbalanced Inputs

Balanced inputs through XLR socket

banner-bg

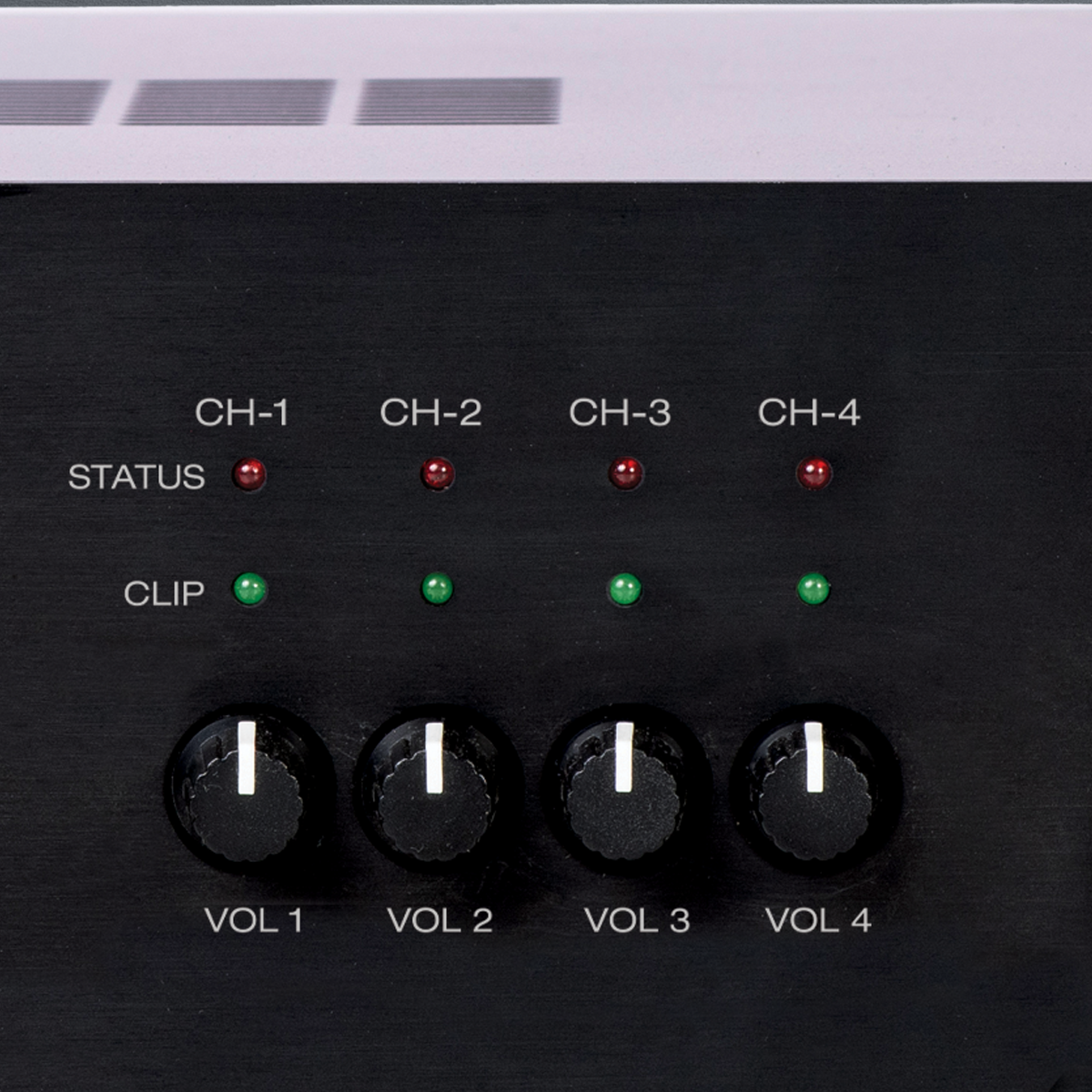

Indicators

Status and clip indicators for each channel

Technical Specifications

SYSTEM

  • DESCRIPTION

    4 channel power amplifier

  • AMPLIFIER TYPE

    Class D

  • CONTINUOUS POWER

    200 watt into 4 Ohm per channel, 100 watt into 8 Ohm per channel

  • INPUT

    4 x Balanced LINE input via XLR socket, 4 Balanced LINK

  • SWITCHES

    Power switch on front panel

  • INDICATORS

    Power on and Auto power indicator, Status indicator, Clip indicator, Fault indicator

  • CONTROLS

    4 x volume controls on front dial

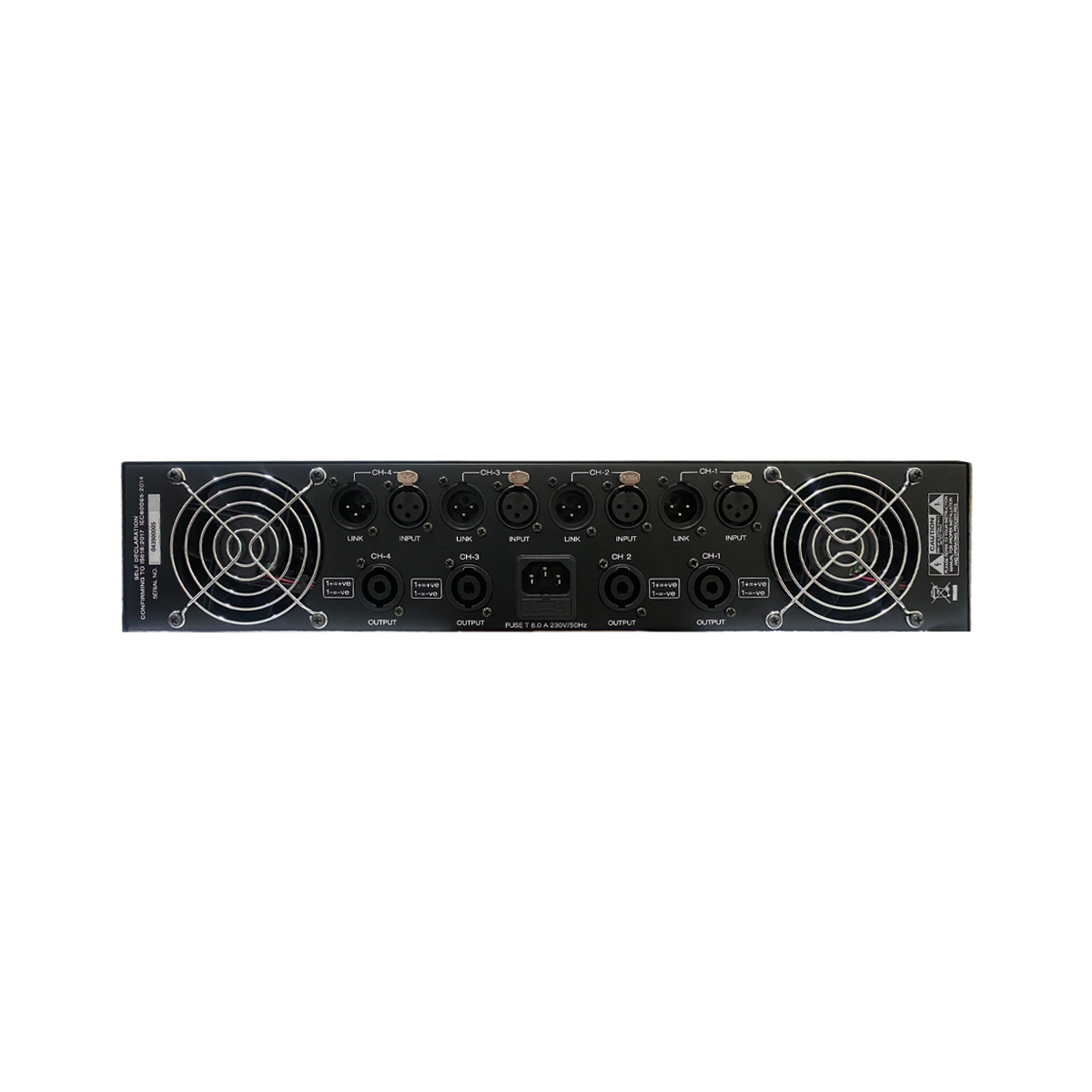

  • OUTPUT

    Speaker output for 4 channels via twist-lock connector

  • INPUT SENSITIVITY

    700mV

  • INPUT IMPEDANCE

    22kOhm

  • FREQUENCY RESPONSE

    20Hz ~ 20kHz, ± 3dB

  • SIGNAL TO NOISE RATIO

    >90dB

  • THD

    less than 0.5 (1kHz)

GENERAL

  • PROTECTION

    DC at amplifier output, Power on/off surge, overheat, short-circuit, RFI

  • POWER REQUIREMENT

    230V AC, 50Hz

  • POWER SUPPLY TYPE

    SMPS

  • FINISH

    Chassis and cover black powder coated, aluminium dial black anodised

  • DIMENSIONS (WxHxD)

    483mm x 88mm x 264mm

  • NET WEIGHT

    5.5kg

SYSTEM

  • DESCRIPTION

    4 channel power amplifier

  • AMPLIFIER TYPE

    Class D

  • CONTINUOUS POWER

    200 watt into 4 Ohm per channel, 100 watt into 8 Ohm per channel

  • INPUT

    4 x Balanced LINE input via XLR socket, 4 Balanced LINK

  • SWITCHES

    Power switch on front panel

  • INDICATORS

    Power on and Auto power indicator, Status indicator, Clip indicator, Fault indicator

  • CONTROLS

    4 x volume controls on front dial

  • OUTPUT

    Speaker output for 4 channels via twist-lock connector

  • INPUT SENSITIVITY

    700mV

  • INPUT IMPEDANCE

    22kOhm

  • FREQUENCY RESPONSE

    20Hz ~ 20kHz, ± 3dB

  • SIGNAL TO NOISE RATIO

    >90dB

  • THD

    less than 0.5 (1kHz)

GENERAL

  • PROTECTION

    DC at amplifier output, Power on/off surge, overheat, short-circuit, RFI

  • POWER REQUIREMENT

    230V AC, 50Hz

  • POWER SUPPLY TYPE

    SMPS

  • FINISH

    Chassis and cover black powder coated, aluminium dial black anodised

  • DIMENSIONS (WxHxD)

    483mm x 88mm x 264mm

  • NET WEIGHT

    5.5kg

banner-bg

Included in the box

  • 1 x DE 4340
  • 1 x power cord
  • Owners Manual
